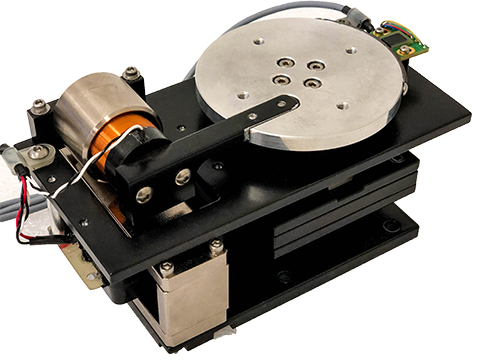

XY-Theta Voice Coil Positioning Stage

The XY-Theta voice coil stage (VCS02-005-LB-01-MXYT) is a closed loop positioning system that can be used for positioning applications that require a limited rotation theta stage integrated. The stage utilizes a custom low-profile design that utilizes a unique electromagnetic circuit design. The motor has a two-axis planar coil assembly that interacts with a common magnetic circuit. This circuit design allows for a minimal overall height of 2.93 inches [74.5 mm]. Each linear axis has a 0.23" [6.0 mm] stroke; generate 0.50 lbs [2.2 N] of continuous force and 1.50 lbs [6.6 N] of peak force. The X and Y axes are guided by a precision recirculating linear ball bearing system. It includes a non-contact one-micron resolution magnetic linear encoder on each linear axis allowing for precise positioning. The theta axis has a rotary displacement of 10 degrees, a continuous torque of 2.2 in-lbs [0.25 Nm], and a peak torque of 6.5 in-lbs [0.73 Nm]. There is also a non-contact encoder for feedback on the theta axis that has 239000 counts per revolution. Each axis utilizes a precision linear bearing system, which minimizes the amount of pitch, yaw, and roll in the system. This design utilizes a moving coil in all three axes, which has a lower moving mass that enables the highest possible acceleration. Voice coil positioning stages are ideal for applications that require quick, short moves with fast settling times.

Features:
- Single motor achieves XY motion
- Single plane XY motion
- Three-axis motion control
- Compact, small footprint, low-profile
- Light moving mass, low system weight
