10 lb Single Axis Linear Stepper Forcer - STS-1220-AP3

10 lb Single Axis Linear Stepper Forcer,a linear motor,product,STS-1220-AP3
10 lb Single Axis Linear Stepper Forcer, STS-1220-AP3
3D Cube

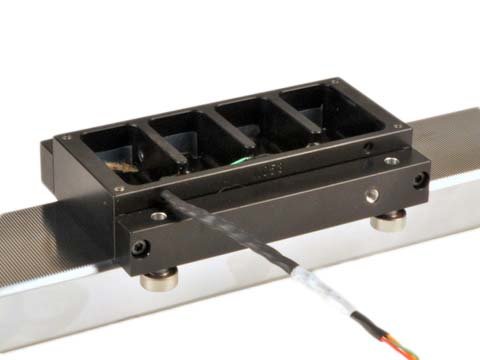

The STS-1220-AP3 is a 2-phase single axis linear stepper motor that generates a continuous force of 11.0 lbs [48.8 N]. It is guided by precision roller bearings along the platen. Integral air bearings are used to maintain the required motor air gap. 60 PSI of filtered compressed air should be supplied by the customer. Power is supplied to the motor via a 7.5in long cable with a 4-pin Molex connector (P/N: 39-01-4041). There are mounting holes on the top of forcer to allow for payload mounting. This is a replacement for NorMag (Northern Magnetics) P/N 1304-2-BS3. It is also used in a Speedline MPM AP25 & Vision (P/N 1003647 / 1005434-01).  Baldor Motors P/N LMSS-1304-2AW0.

This forcer is designed to operate on a 1.96" [49.8 mm] wide, 0.95" [24.1 mm] thick tube platen. Platen Model #: P1294.

To determine your motion profile needs, use our linear motion calculator.

This motor has been integrated into the following positioning stages:
LSS-031-04-011-MEA


Bearing TypeAir
Forcer Mass0.92 lbs419 grams
Platen Mass0.28 lbs/in5.0 grams/mm
# of Phases2
Resistance @ 20C1.2 ohms
Inductance @ 20C1.3 mH
Electrical Time Constant1.1 msec
Force11.0 lbs48.8 N
Current4.0 amps
Forcer Length4.5 in114 mm
Forcer Width2.9 in74.2 mm
Forcer Height0.95 in24.1 mm
Product Drawing
