Ironcore Linear Motor - BLSM-7I

Ironcore Linear Motor,a linear motor,product,BLSM-7I

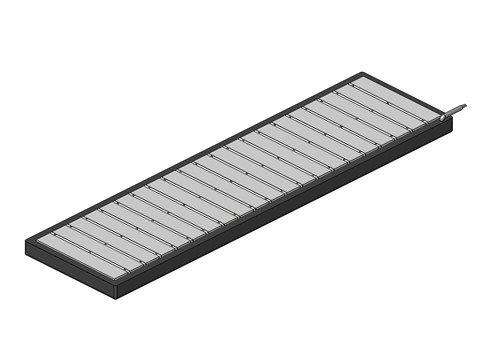

Ironcore Linear Motor, BLSM-7I
The 3-phase brushless linear motor coil assembly can be commutated trapezoidally utilizing integrated hall effects, or sinusodially using software commutation in conjunction with the appropriate amplifier, or motion controller and encoder feedback.  Any standard 3-phase brushless servo amplifier can be used to provide power to the coil assembly.  The power to the motor, which is supplied from a brushless servo amplifier via a shielded high flex motor power cable.  If the motor is ordered with a hall effect assembly board then a secondary high flex commutation cable will be included.  Equivalent to Baldor motor LMIC7I.

To determine your motion profile needs, use our linear motion calculator.

Coil Weight* lbs* kg
Coil Length* in* mm
Power @ 10% Duty* watts
Current @ 10% Duty12.0 amps
Force @ 10% Duty3105 lbs13813 N
Power @ 100% Duty* watts
Current @ 100% Duty4.0 amps
Force @ 100% Duty1164 lbs5179 N
Back EMF32.9 V/ips1294 V/m/sec
Force Constant291 lbs/amp1294.8 N/amp
Motor Constant* lbs/√watt* N/√watt
Resistance @ 20C* ohms
Electrical Cycle Length1.35 in34.29 mm
Attractive Force12663 lbf56326 N/ft
Air Gap0.03 in0.76 mm
