Air Bearing Stage - ABS-011-09-030-X

Air Bearing Stage,a linear motor,product,ABS-011-09-030-X
Air Bearing Stage, ABS-011-09-030-X

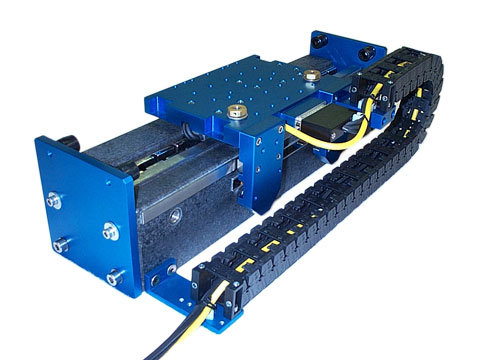

The ABS-011-09-030-X air bearing positioning stage uses a brushless linear motor to generate a continuous/peak force of 30.1 lbs [134 N]/790.3 lbs [402 N] with a total stroke length of 10.5 in [267 mm]. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by 5 flat magnetically preloaded non-contact porous carbon air bearings (flat air bearing) floating on a granite base with excellent flatness and straightness specifications. There are also provisions that allow customer cables to be routed within the cable carrier. It has end-of-travel rubber bumper stops. End-of-travel-sensors and custom mounting holes on the moving table are available upon request. This system has no wearing parts. It is ideal for applications that require frictionless motion with low velocity ripple.



To determine your motion profile needs, use our linear motion calculator.

Motor P/N n/a
Stroke10.5 in267 mm
Encoder Resolution1.0 micron
Bearing TypeAir
Moving Mass5.0 lbs2.3 kg
Total Mass50.0 lbs22.7 kg
Resistance @ 20C12.1 ohms
Inductance @ 20C9.0 mH
Electrical Time Constant0.70 msec
Motor Constant2.6 lbs/√watt11.6 N/√watt
Force Constant9.2 lbs/amp11.6 N/amp
Back EMF1.2 V/ips40.9 V/m/sec
Force @ 100% Duty30.1 lbs134 N
Power @ 100% Duty135 watts
Current @ 100% Duty3.3 amps
Force @ 10% Duty90.3 lbs402 N
Power @ 10% Duty1215 watts
Current @ 10% Duty9.9 amps
Stage Length20.4 in518 mm
Stage Width8.7 in221 mm
Stage Height5.2 in132 mm
Product Drawing
