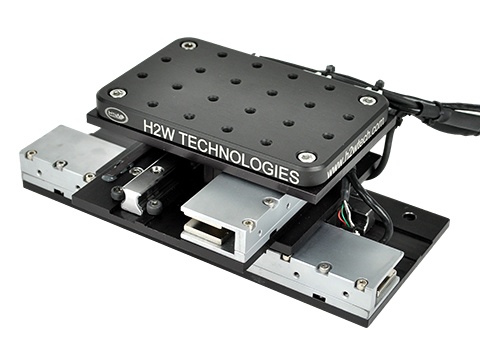

The SRS-004-006/004-003-01-XY is a low profile XY single rail positioning stage that uses brushless linear motors to generate a continuous/peak force of 6.2 lbs [27.8 N]/18.7 lbs [83.3 N] (bottom axis), 3.1 lbs [13.8 N]/9.4 lbs [41.8 N] (top axis), with a total stroke length of 4.3 in [109 mm] (bottom axis), 4.3 in [109 mm] (top axis). The top axis is able to directly mount to the moving bottom axis motor. This helps reduce the overall height and moving mass of the system. The non-contact 1.0-micron resolution encoder allows for precise positioning. It is guided by a rigid recirculating ball linear bearing. It has end-of-travel bumper stops. It features an optional optical breadboard plate for mounting payloads. A home positioning sensor, end-of-travel-sensors, and custom mounting holes on the moving table are available upon request.
Features:
- Compact size
- Low profile
- Two axis motion control
- Optional optical breadboard plate
| Product Details (PDF) |  |
| Motor P/N | BLDM-B04 | |
| Stroke | 4.3 in | 109 mm |
| Encoder Resolution | 1 micron | |
| Force @ 100% Duty | 6.2 lbs | 27.8 N |
| Force @ 10% Duty | 18.7 lbs | 83.3 N |
| Motor P/N | BLDM-B02 | |
| Stroke | 4.3 in | 109 mm |
| Encoder Resolution | 1 micron | |
| Force @ 100% Duty | 3.1 lbs | 13.8 N |
| Force @ 10% Duty | 9.4 lbs | 41.8 N |
