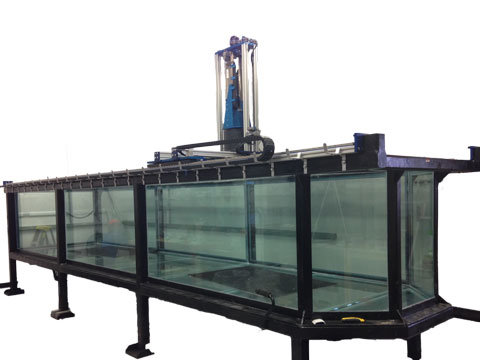

5-Axis Gantry

multi-axis solution that uses direct drive linear motor technology and rotary-to-linear technology


Features:
- High Force
- Long Horizontal Travel
- Dual Independent Vertical Axis
- Rotary axis is capable of full 360 degree rotation
- Five axis of coordinated motion (combined linear and rotary displacement)


Multi-Axis Stage
Product Details (PDF)
Horizontal Axis (Brushless Linear Motor Stage)
Motor P/N Dual BLDD-08
Stroke 255 in 6400 mm
Encoder Resolution 1 micron
Force @ 100% Duty 400 lbs 1779 N
Force @ 10% Duty 1200 lbs 5337 N
Independent Vertical Axis (Brushless Linear Motor Stage)
Motor P/N BLDC-04
Stroke 18.25 in 464 mm
Encoder Resolution 1 micron
Force @ 100% Duty 40 lbs 177.9 N
Force @ 10% Duty 120 lbs 533 N
Rotary Axis (Brushless Rotary Motor Stage)
Motor P/N N/A
Stroke 360°
Encoder Resolution 5400 lines/rev
Force @ 100% Duty 150 Nm
Force @ 10% Duty 380 Nm
